Roll to Roll

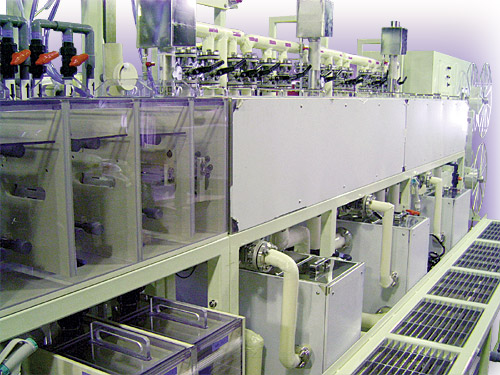

Stripper

This equipments strips photoregist and etching backing agent after etching process.

※Click to enlarge

Lane layout	2Lane
Transfer speed	2.0m／min
Material width	TAB／CSP／COF 35mm～160mm （FPC 　250～300mm）
Material thickness	PI 25μm～
Processed surface	One side
Process flow	Unwinder～Stripping～Wet cleaning～Water cut～Drying～Winder
Utility	Electric power　AC200V・220V / 50Hz・60Hz City water, DI water, Cooling water, Scrubber, Heat exhaust, (steam)
Equipment size	16mL×2.5mW×2.5mH（approximate）※Independent touch panel and incidental facilities
